720W

Model:HM01-0720-NX-CC80

Power: Mean Well

Luminous flux:100800LM

Lighting Effects:140 LM/W

LED Brands: Philips 3030

Input Voltage(V):AC95-305V

LED Qty:1120 PCSQty/Ctn: 1 PCS

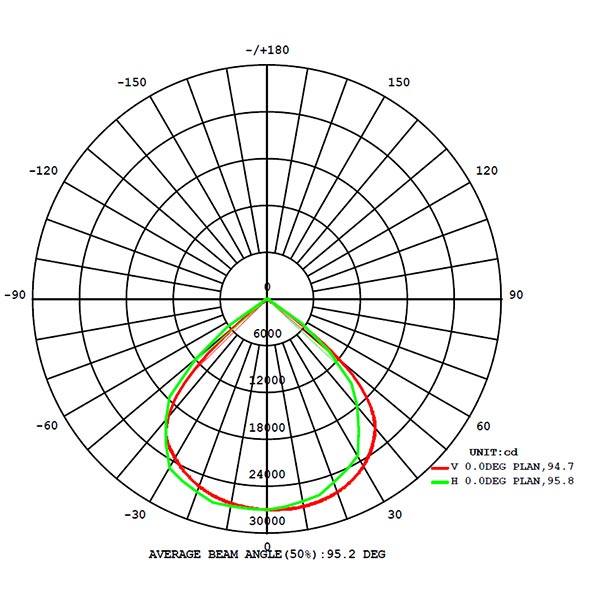

Beam Angles:10°,25°,45°,60°,90°

IP Class:IP66

Carton Dimension:700mm*570mm*225mm

N.W./G.W.:23.0KG/25.0KG

Inquire Now Next Product

description

Application:

1.Airports

2.Shipping Docks

3.Power Plants

4.Sport Fields

5.Stadiums

6.Shopping Centers

7.Expressways

8.Industrial

9.Facilities

10.Railway Terminals

11.Commercial Parking Lots.

12.Port

13.Wharf

14.Tunnel

Exponent:

Output Power:	720W
Frequently	50/60Hz
Power factor:	>0.95
LED Qty/ Brands :	1120 pcs /Philips SMD3030
Lighting Effects:	140LM/W(±5%)
Color Temperature(CCT):	2700-6500K
Color Rendering Index(CRI):	>80
Operation Temperature:	-30~+45℃
IP Class:	IP66
Wattage:	50000Hrs
Input wires:	Brown wire(L)
	Yellow wire(G)
	Green wire(N)
N.W./G.W.:	23.5kg / 25.0kg
Carton Dimension:	700mm570mm225mm

Installation:

720W

Installation requirement:

1. Please prepare two sets of bolts to install the light;

2. Power off before installation;

3. Make sure the installed surface can endure the weight of light, and fix the light on the installed surface securely(according to installation diagram);

4. Connect light wire to power wire, seal the joint with insulation.

Drawing

720W
