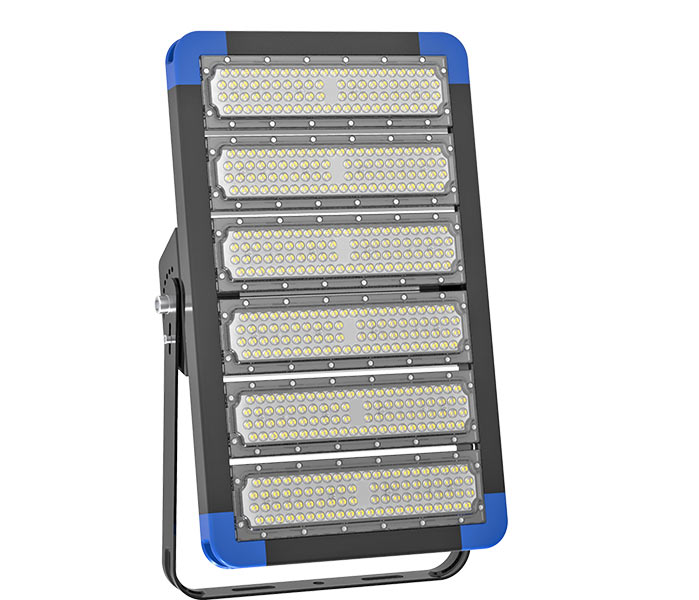

Model：TU01-0300-NP-CC80
Power：Mean well HLG-320-48A
Luminous flux：42000LM
Lighting Effects：140 lm/w
LED Brands：Luminous 3030
Input Voltage(V)：AC85-305V
LED Qty：504 PCS
Beam Angles：10°,25°,45°,60°,90°
IP Class：IP66
.Tunnels
.Workshops
.Large warehouses
.Stadiums
.Metallurgy
.Factories
.Engineering construction
Paramenter：
| Output Power: | 300W |
| Frequently | 50/60Hz |
| Power factor: | >0.95 |
| LED Qty/ Brands : | 504 pcs /Philips SMD3030 |
| Lighting Effects: | 140LM/W(±5%) |
| Color Temperature(CCT): | 2700-6500K |
| Color Rendering Index(CRI): | >80 |
| Operation Temperature: | -30~+45℃ |
| IP Class: | IP66 |
| Wattage: | 50000Hr |
| Input wires: | Brown wire(L) |
| Yellow wire(G) | |
| Green wire(N) | |
| G.W.: | 8.8KG |
| Carton Dimension: | 340mm*120mm*560mm |
Installation:
Installation requirement:
1. Please prepare two sets of bolts to install the light;
2. Power off before installation;
3. Make sure the installed surface can endure the weight of light, and fix the light on the installed surface securely(according to installation diagram);
4. Connect light wire to power wire, seal the joint with insulation.
Drawing:
Exploded view:
Packaging:
